CONTRACTOR: OBAYASHI – FUTSU JV

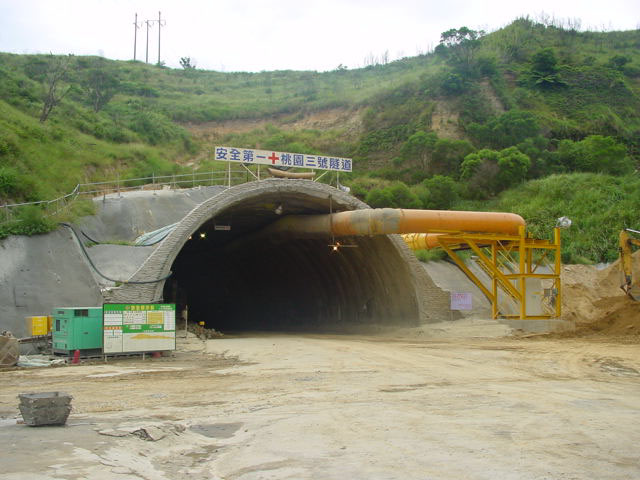

THSR C215 project include Taoyeng Tunnel.

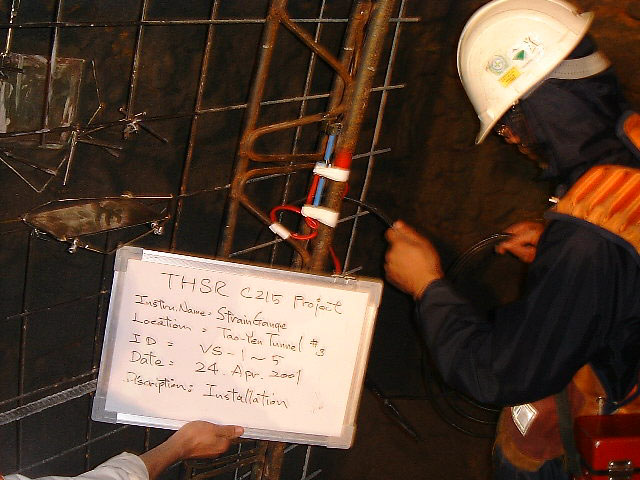

● Instruments – Extensometer, Pressure Cell, Stain Gauge, and Measure Anchor Installation
● Supply Datalogger and Multiplexer
● Supply automatic transfer software – GEOAUTO for automatic monitoring system
● Supply data base management software – DBMS include 3-D data management.

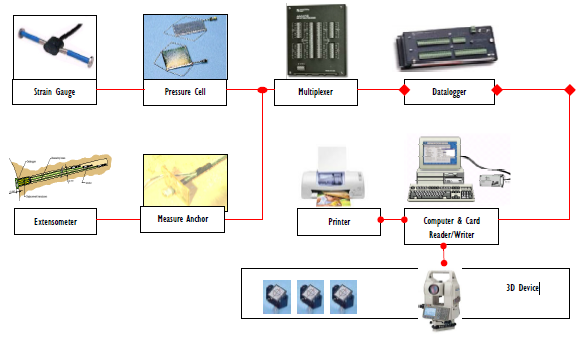

CONFIGURATION DIAGRAM

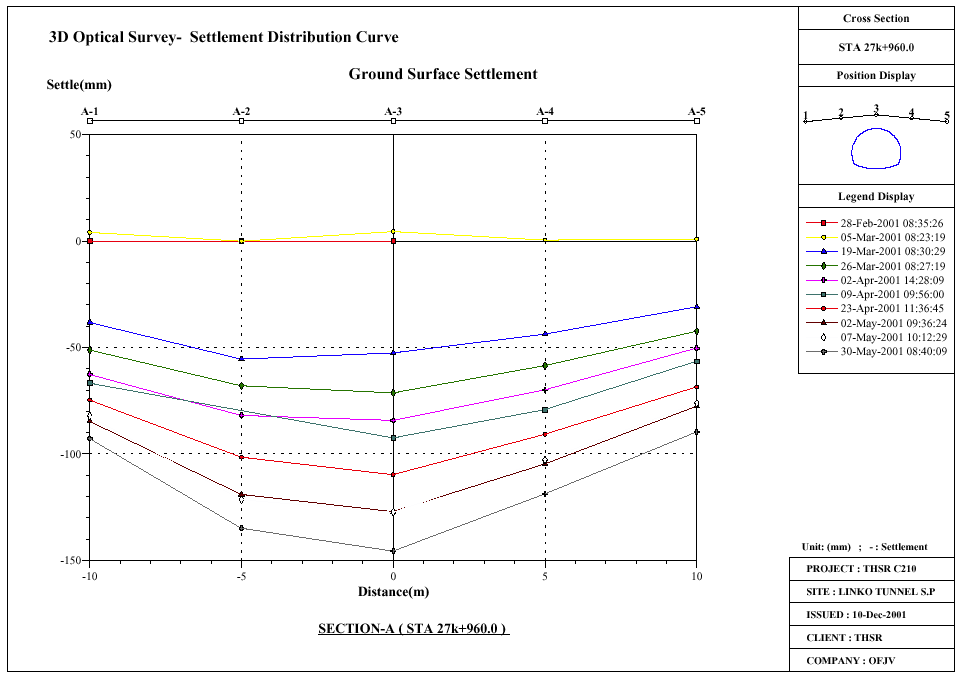

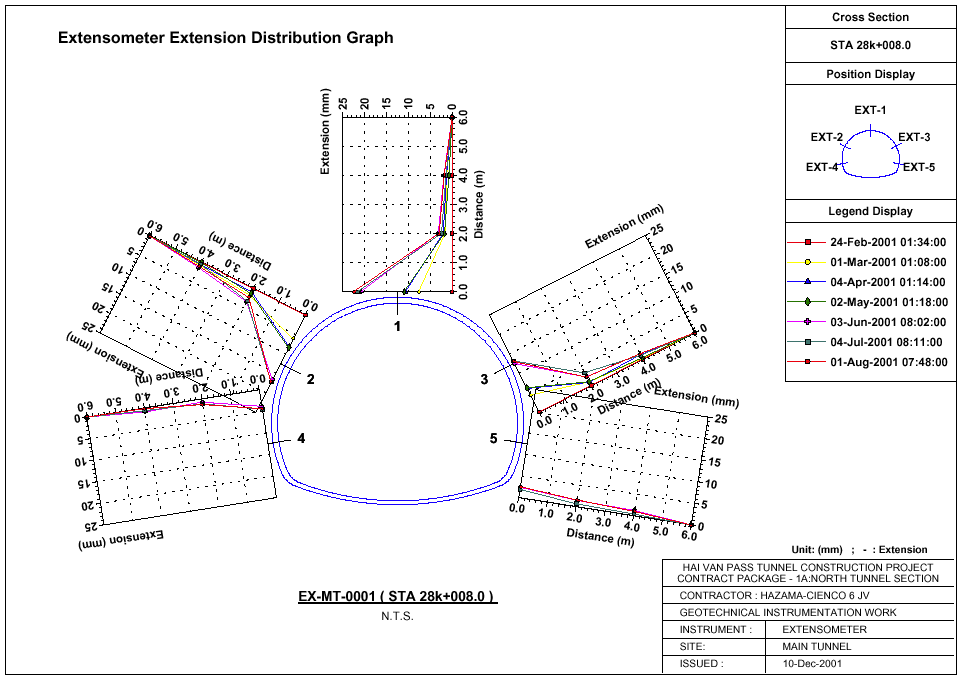

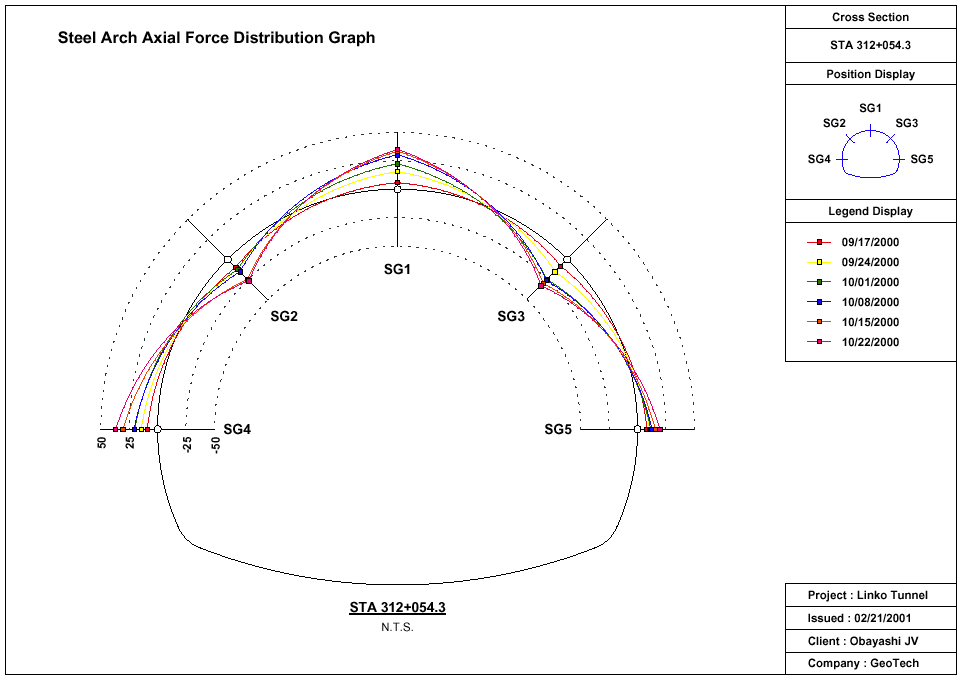

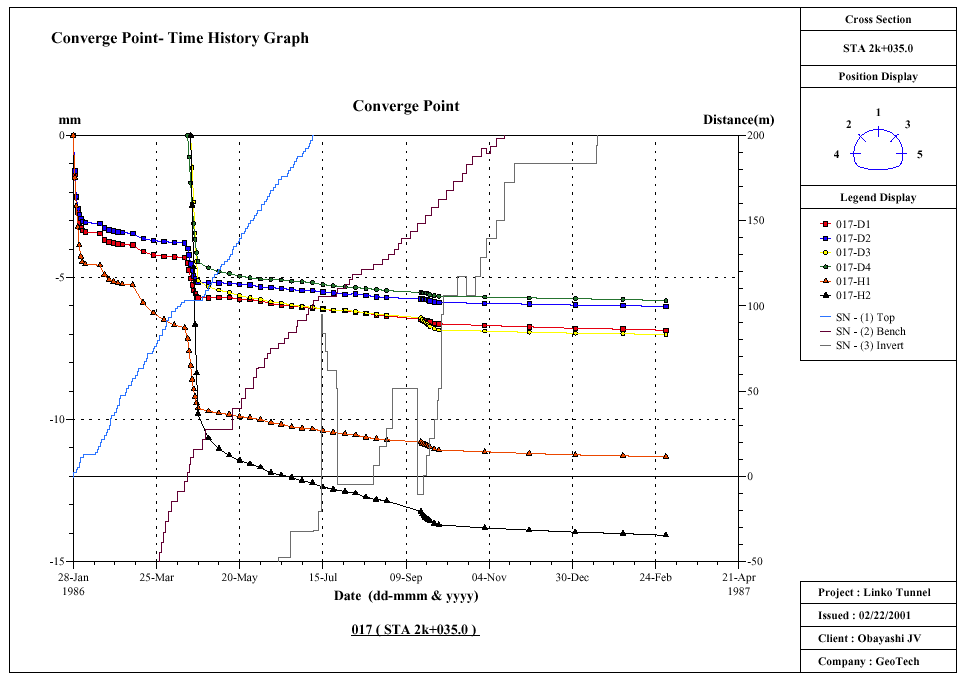

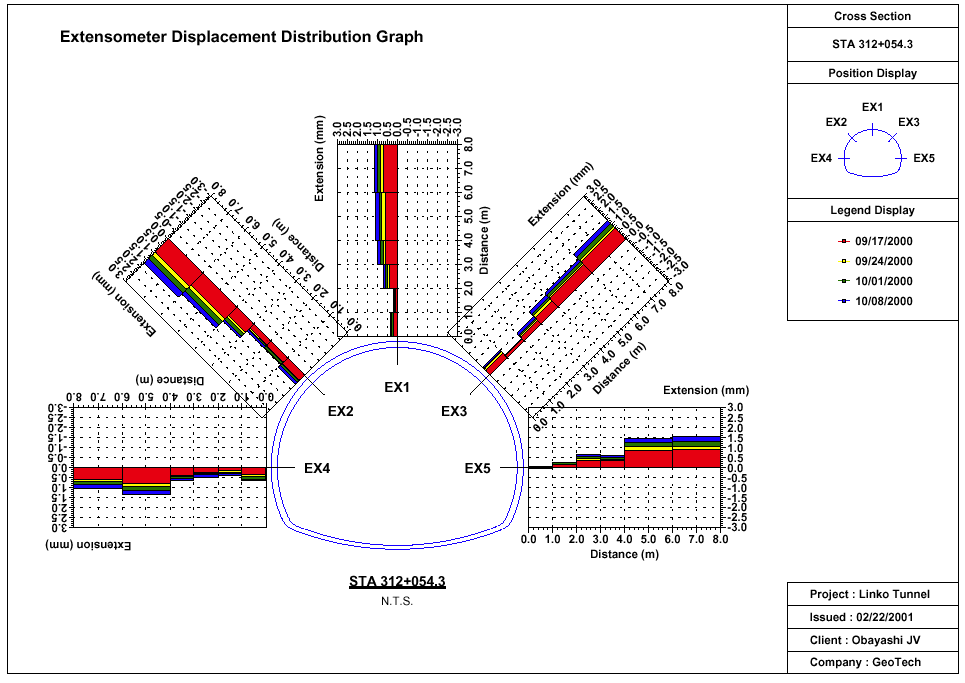

OUTPUT FORMAT
